Name: True CVM-11-HC-EGC01 Contemporary Visual Merchandiser
Brand: True Manufacturing
SKU: CVM-11-HC-EGC01
Price: 2691.70 USD
Availability: InStock

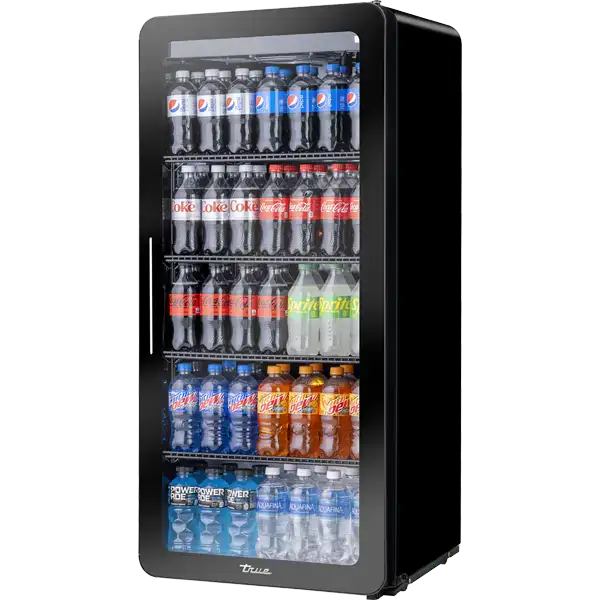

Black beverage cooler with various bottled drinks on a white background

Compact curved-edge merchandiser with 4 shelves, LED lighting, and R290 refrigeration.

Temp Range 33-38 F

Key Features

With its curved edge design and increased beverage storage, the series redefines merchandising
The curved-edged door design has a built-in handle for opening the door from the top or side.
Illuminated handle position indicator.
Uses environmental friendly R290 Hydrocarbon refrigerant.
Energy efficient, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C).
Self-Cleaning Technology eliminates the need for cleaning of condenser coil, reduces energy consumption and helps maintain the coldest temperature and freshest product.

Design

True's Contemporary Series is built with durability, stability, and style in mind. Through the series' curved edge design it redefines merchandising with its inspired product displays and increased beverage storage.

Refrigeration System

Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.

Cabinet Construction

Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
Interior - attractive, back aluminum interior liner with stainless steel floor.
Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Leg Levelers and (4) 2 1/2" integrated rollers.

Door

"Low-E", double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficient technology.
The door features an integrated LED handle indicator for a sleek, modern appearance.
Self closing door. Positive seal, torsion type closure system.
Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
Edge door will not change when an alternative interior or exterior finish is ordered.

Shelving

Four (4) adjustable, heavy duty PVC coated wire shelves 20 5/8"L x 17 1/2"D (524mm x 445 mm). Four (4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13mm) increments.

Lighting

LED interior lighting, safety shielded.

Electrical

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUCVM-11-HC-EGC01

Depth22.875

Temp Range33-38 F

PlugStandard US 15 Amp Plug

Shipping Weight210 lb

Width24.875

Height53.625

RefrigerantR290

Amps2.5

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelCVM-11-HC-EGC01

Crated Weight210 lb

Cabinet Dimensions

Width (W)24.875

Depth (D)22.875

Height (H)53.625

Electrical

Horsepower1/5

Voltage115

Amps2.5

NEMA Config.Standard US 15 Amp Plug

Cord Length10 ft

RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Downloads

PDF Download Spec Sheet (PDF) CVM-11-HC-EGC01 ·rough-in data & plan view

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
