Name: True GDM-07-HC-TSL01 Glass Door Merchandiser
Brand: True Manufacturing
SKU: GDM-07-HC-TSL01
Price: 2533.04 USD
Availability: InStock

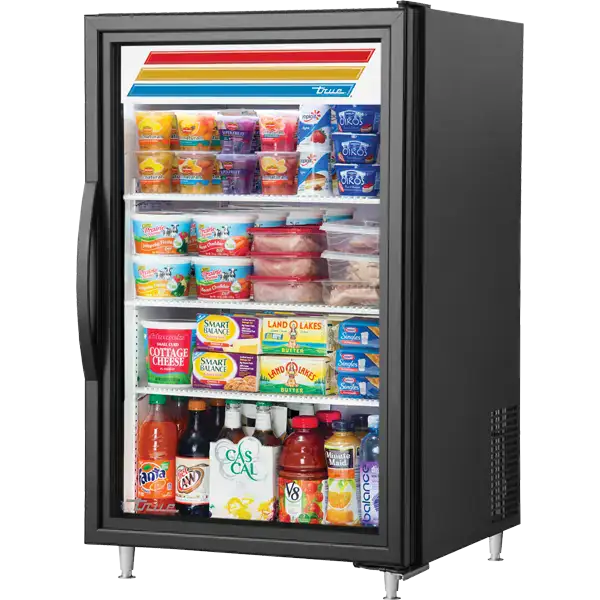

True GDM-07-HC-TSL01 Glass Door Merchandiser

Countertop glass door merchandiser with 3 shelves, Low-E insulated glass, and R290 refrigeration.

Temp Range 33-38 F

Key Features

The world's #1 manufacturer of glass door merchandisers.
True's commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.
Designed for convenient access, fast service, and attractive display.
Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
Interior - attractive, white aluminum interior liner with stainless steel floor.
Self closing door. Positive seal, torsion type closure system.
"Low-E", double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficient technology.
LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Design

True's commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.

Refrigeration System

Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.

Cabinet Construction

Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
Interior - attractive, white aluminum liner with stainless steel floor.
Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Cabinet fitted with 2 1/2" (64 mm) legs.
Door sign decal. Variety of decal options available.

Door

"Low-E", double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficient technology.
Door fitted with 12" (305 mm) long extruded handle.
Self closing door. Positive seal, torsion type closure system.
Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

Shelving

Three (3) adjustable, heavy duty PVC coated wire shelves; two 19 11/16"L x 17"D (501 mm x 432 mm) and one (1) 19 11/16"L x 16 1/2"D (501 mm x 420 mm). Four (4) chrome plated shelf clips included per shelf.
Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

Lighting

LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Model Features

Evaporator is epoxy coated to eliminate the potential of corrosion.
See our website www.truemfg.com for latest color and decal offerings.
Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Electrical

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUGDM-07-HC-TSL01

Depth24.625

Temp Range33-38 F

PlugStandard US 15 Amp Plug

Shipping Weight180 lb

Width24.125

Height39.875

RefrigerantR290

Amps1.9

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelGDM-07-HC-TSL01

Crated Weight180 lb

Cabinet Dimensions

Width (W)24.125

Depth (D)24.625

Height (H)39.875

Electrical

Horsepower1/6

Voltage115

Amps1.9

NEMA Config.Standard US 15 Amp Plug

Cord Length9 ft

RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Downloads

PDF Download Spec Sheet (PDF) GDM-07-HC-TSL01 ·rough-in data & plan view

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
