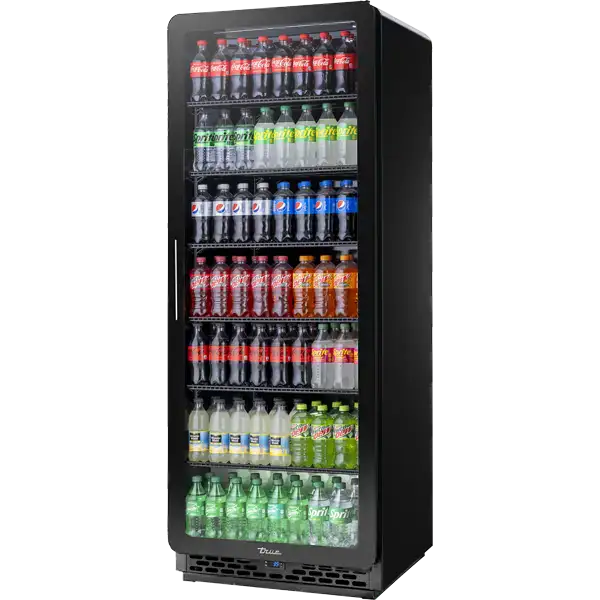

True CVM-27-HC-EGC01 Contemporary Visual Merchandiser

Design

• True's Contemporary Series is built with durability, stability, and style in mind. Through the series' curved edge design it redefines merchandising with its inspired product displays and increased beverage storage.

Refrigeration System

• Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.

Cabinet Construction

• Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
• Welded, heavy duty steel frame rail, black powder coated for corrosion protection. Frame rail fitted with leg levelers.
• Interior - attractive, black aluminum interior liner with stainless steel floor.
• Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• Leg Levelers only.

Door

• The curved-edged door design has a built-in handle for opening the door from the top or side.
• "Low-E", double pane thermal insulated glass door assembly with mitered plastic channel frame. The latest in energy efficient technology.
• Features an integrated LED handle indicator.
• Self closing door. Positive seal, torsion type closure system.
• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.
• Edge door design and color will not change when an alternative interior or exterior finish is ordered.

Shelving

• Six (6) adjustable, heavy duty PVC coated wire shelves 25 11/16"L x 23 1/4"D (653 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
• Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13mm) increments.

Lighting

• LED interior lighting, safety shielded.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
