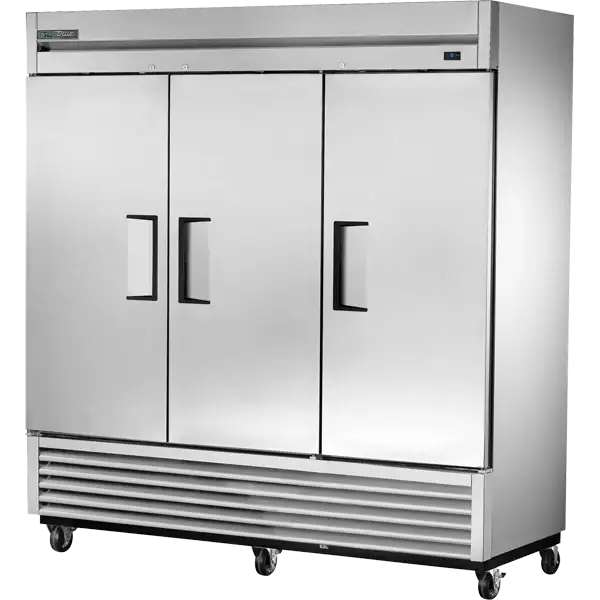

True TS-72F-HC Reach-In Freezer -

True TS-72F-HC Reach-In Freezer

$ 11,018.51

Pickup available at Pleasant Prairie, WI

Three-door TS-Series reach-in freezer with robust -10 °F performance and stainless construction.

Temp Range -10 F

Key Features

  • True's TS series is the choice for the exclusive stainless steel commercial application.
  • Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today's food service marketplace.
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
  • Stainless steel interior and exterior front, sides and doors. The very finest stainless with higher tensile strength for fewer dents and scratches. Matching aluminum back.
  • Adjustable, heavy duty PVC coated gray shelves.
  • Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
  • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
  • Bottom mounted units feature:
  • "No stoop" lower shelf.
  • Storage on top of cabinet.
  • Compressor performs in coolest, most grease free area of kitchen.
  • Easily accessible condenser coil for cleaning.

Design

  • True's TS series is the choice for the exclusive stainless steel commercial application.
  • Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today's food service marketplace.

Refrigeration System

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
  • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
  • Bottom mounted units feature: "No stoop" lower shelf. Storage on top of cabinet. Compressor performs in coolest, most grease free area of kitchen. Easily accessible condenser coil for cleaning.

Cabinet Construction

  • Exterior - Stainless steel doors, front and sides. Corrosion resistant GalFan coated steel back.
  • Interior - Stainless steel liner and floor.
  • Insulation - entire cabinet structure and solid doors are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

Doors

  • Stainless steel exterior and liners. Doors extend full width of cabinet shell. Door locks standard.
  • Lifetime guaranteed recessed door handles. Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to ensure permanent attachment.
  • Positive seal self-closing doors. Lifetime guaranteed door hinges and torsion type closure system.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

  • Nine (9) adjustable, heavy duty PVC coated gray wire shelves 24 1/8"L x 22 3/8"D (613 mm x 591 mm). Four (4) chrome plated shelf clips included per shelf.
  • Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.

Lighting

  • LED Interior lighting - safety shielded. Lights activated by rocker switch mounted above doors.

Model Features

  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • Exterior solar, digital temperature display.
  • Rear airflow guards prevent product from blocking optimal airflow.
  • NSF/ANSI Standard 7 compliant for open food product.

Electrical

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 20 amp dedicated outlet.
  • Unit utilizes a dual compressor system rated at 3/4 HP each.
  • Cord and plug set included.

At a Glance

SKUTS-72F-HC
Depth29.5
Temp Range-10 F
PlugUS 20 Amp Plug
Shipping Weight650 lb
Width78.375
Height78.375
RefrigerantR290
Amps14.0

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelTS-72F-HC
Crated Weight650 lb
Cabinet Dimensions
Width (W)78.375
Depth (D)29.5
Height (H)78.375
Electrical
Horsepower3/4
Voltage115
Amps14.0
NEMA Config.US 20 Amp Plug
Cord Length9 ft
RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
