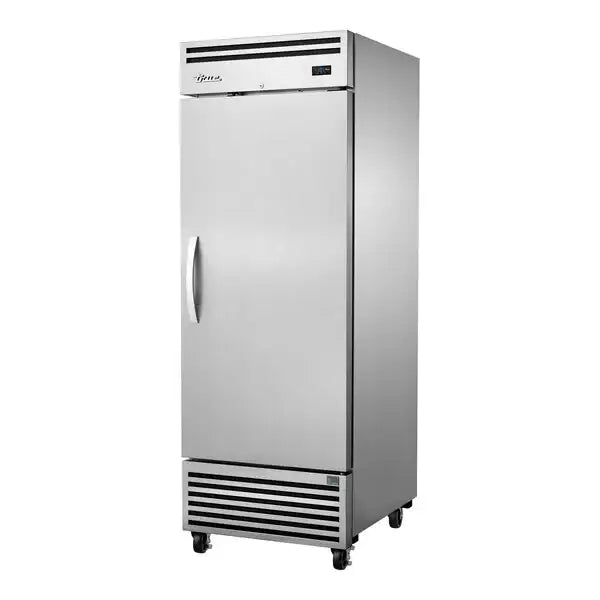

Stainless steel freezer on a white background

True TGN-1F-1S Reach-In Freezer

$ 5,533.58

Pickup available at Pleasant Prairie

Compact reach-in freezer with self-cleaning reverse condensing unit technology.

Temp Range -10 F

Key Features

  • True's solid door reach-in's are designed with enduring quality that protects your long term investment.
  • Designed using the highest quality materials and components to provide the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today's food service marketplace.
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of -10°F (-23.3°C).
  • Stainless steel front. Aluminum ends. Corrosion resistant GalFan coated steel back and top.
  • Interior - Clear coated aluminium, stainless steel base.
  • "No stoop" lower shelf.
  • Compressor performs in coolest, most grease free area of kitchen.
  • Easily accessible condenser coil for cleaning.
  • True's self-cleaning reverse condensing unit technology eliminate the need to clean the condenser coil by reversing the fan direction upon each startup of the unit, which causes air to blow through the condensing coil and effectively removes any dirt, dust, and debris.

Design

  • True's commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today's food service marketplace.

Refrigeration System

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • Extra large evaporator coil balanced with higher horsepower compressor and large condenser; maintains -10°F (-23.3°C).
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Bottom mounted condensing unit positioned for easy cleaning. Compressor runs in coolest and most grease free area of the kitchen. Allows for storage area on top of unit.
  • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
  • True's self-cleaning reverse condensing unit technology eliminate the need to clean the condenser coil by reversing the fan direction upon each startup of the unit, which causes air to blow through the condensing coil and effectively removes any dirt, dust, and debris.

Cabinet Construction

  • Exterior - Stainless steel front. Aluminum ends. Corrosion resistant GalFan coated steel back and top.
  • Interior - Clear coated aluminium, stainless steel base.
  • Insulation - entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Frame rail fitted with 4" (102 mm) diameter stem castors - locks provided on front set.

Door

  • Stainless steel exterior with clear aluminum liner to match cabinet interior. Door extend full width of cabinet shell.
  • Barrel lock standard.
  • Door fitted with 15" (381 mm) long extruded handle.
  • Magnetic gasket of one piece construction, removable without tools for ease of cleaning.
  • Positive seal self-closing door.
  • Field reversible door hinging.

Shelving

  • Gastronorm dual slide system with 3 gray wire shelves and 12" X 20" (305 mm x 508 mm) pan storage.

Lighting

  • LED Interior lighting.

Model Features

  • Exterior temperature display.
  • Evaporator is epoxy coated to eliminate the potential of corrosion.

Electrical

  • Unit completely pre-wired at factory and ready for final connection to a 120/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUTGN-1F-1S
Depth33.75
Temp Range-10 F
PlugStandard US 15 Amp Plug
Shipping Weight300 lb
Width28.75
Height78.5
RefrigerantR290
Amps1.6

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelTGN-1F-1S
Crated Weight320 lb
Cabinet Dimensions
Width (W)28.75
Depth (D)33.75
Height (H)78.5
Electrical
Horsepower1/2
Voltage120
Amps1.6
NEMA Config.Standard US 15 Amp Plug
Cord Length10 ft
RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
