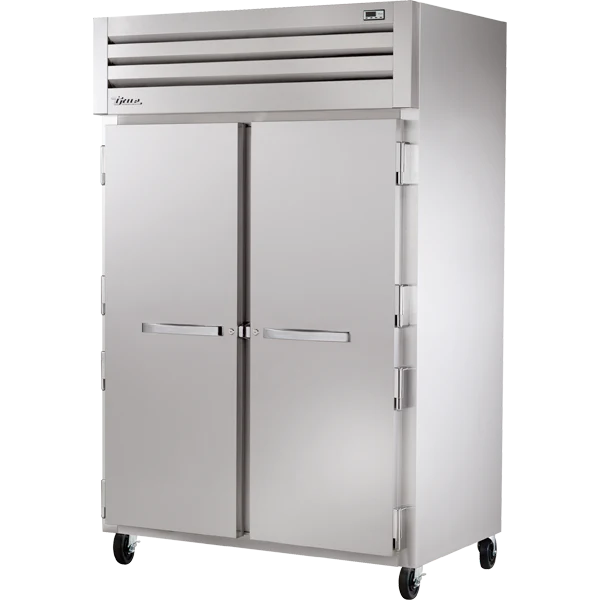

True STG2R-2S-HC Spec Series Reach-In Refrigerator

Refrigeration System

• Factory engineered, self-contained, expansion valve (TXV) system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
• State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
• Electronic control.

Cabinet Construction

• Insulation - Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
• 5" (127 mm) diameter plate castors - locks provided on front set.

Doors

• Lifetime guaranteed bolt style door locks.
• Lifetime guaranteed heavy duty all metal working door handles.
• Positive seal self-closing doors with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Lighting

• LED interior lighting, safety shielded.

Model Features

• Exterior digital temperature display, available with either °F or °C.
• Evaporator epoxy coated to eliminate the potential of corrosion.
• Curb mounting ready.
• NSF/ANSI Standard 7 compliant for open food product.

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

Shelving Kit Options

• STG series (this model) exterior is stainless steel door with matching aluminum sides; interior is aluminum side walls & back with stainless steel floor & ceiling; shelving is (3) heavy duty, PVC coated wire shelves per section.
• STR series kits factory installed at no charge. STA & STG series kits field installed, upcharge applies, lead times may apply.
• Kit #1: Nine (9) sets of #1 type tray slides and pilasters (field installed), bottom support of one (1) 18"L x 26"D (458 mm x 661 mm) pan or two (2) 14"L x 18"D (356 mm x 458 mm) pans.
• Kit #2: One (1) set half-section #2 steel rod tray slides and pilasters (field installed), rim support of one (1) 18"L x 26"D (458 mm x 661 mm) pan.
• Kit #3: Six (6) sets of universal type tray slides and pilasters (field installed), bottom support of one (1) 18"L x 26"D (458 mm x 661 mm) pan, two (2) 14"L x 18"D (356 mm x 458 mm) pans or two (2) 12"L x 20"D (305 mm x 508 mm) pans.
• Kit #4: Three (3) chrome shelves 26 5/16"L x 21 9/16"D (669 mm x 548 mm). Optional wall mounted shelf support pilasters (field installed) with four (4) shelf clips per shelf available; adjustable on 1/2" (13 mm) increments (must order at time of cabinet order).
• Additional kit option components available individually.
