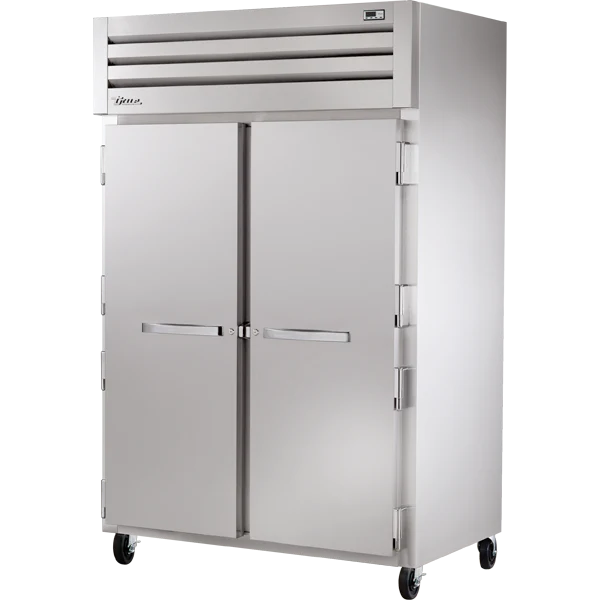

True STG2F-2S-HC Spec Series Reach-In Freezer

True STG2F-2S-HC Spec Series Reach-In Freezer

$ 6,273.67

Pickup available at Pleasant Prairie

Two-section Spec Series reach-in freezer maintaining -10 °F with heavy-duty components.

Temp Range -10 F

Refrigeration System

  • Factory engineered, self-contained, expansion valve (TXV) system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity.
  • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.
  • Automatic evaporator fan motor delay during defrost cycle.

Cabinet Construction

  • Insulation - Entire cabinet structure and solid door are foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • 5" (127 mm) diameter plate castors - locks provided on front set.

Doors

  • Lifetime guaranteed bolt style door locks standard.
  • Lifetime guaranteed heavy duty all metal working door handles.
  • Positive seal self-closing door with 120° stay open feature. Lifetime guaranteed external cam lift door hinges, four (4) per door section.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

  • One (1) factory installed interior kit option. Four (4) different interior kits available (see Kit Options). Pilasters and tray slides are factory installed at no charge.

Lighting

  • LED interior lighting, safety shielded.

Model Features

  • Exterior digital temperature display, available with either °F or °C.
  • Evaporator epoxy coated to eliminate the potential of corrosion.
  • Curb mounting ready.
  • NSF/ANSI Standard 7 compliant for open food product.

Electrical

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUSTG2F-2S-HC
Depth33.75
Temp Range-10 F
PlugStandard US 15 Amp Plug
Shipping Weight550 lb
Width52.625
Height77.75
RefrigerantR290
Amps9.4

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelSTG2F-2S-HC
Cabinet Dimensions
Width (W)52.625
Depth (D)33.75
Height (H)77.75
Electrical
Horsepower1 1/4
Voltage115
Amps9.4
NEMA Config.Standard US 15 Amp Plug
Cord Length9 ft
RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
