Name: True TD-95-38-HC Horizontal Bottle Cooler
Brand: True Manufacturing
SKU: TD-95-38-HC
Price: 3905.33 USD
Availability: InStock

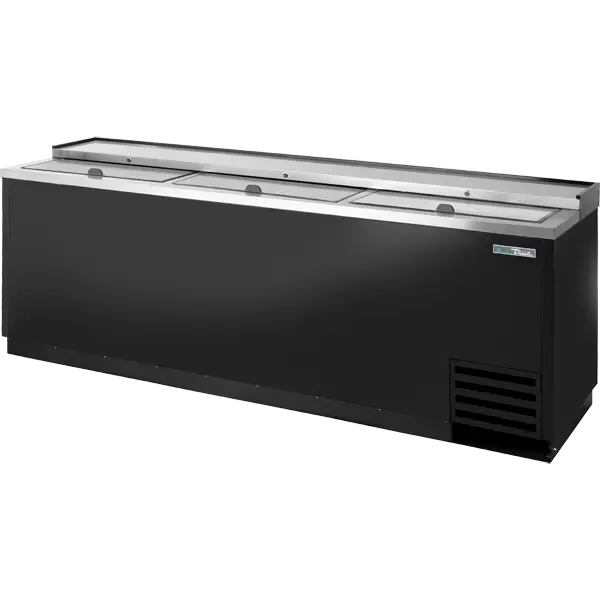

True TD-95-38-HC 95-inch horizontal deep well bottle cooler for bars

Extra wide horizontal bottle cooler with slide lids built for maximum beverage capacity

Temp Range 33- 38 F

Key Features

True's horizontal bottle coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.
Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C) for the best in food preservation.
Forced-air cooling. Positively guided airflow cools bottles on top first. Evaporator coil virtually runs length of cooler for balanced temperatures throughout the cabinet.
Exterior - stainless steel countertop and lids, black powder coated cold rolled steel front, sides, and back.
Interior - long lasting, heavy duty galvanized steel. NSF/ANSI Standard 7 approved for packaged and bottled product.
Evaporator is epoxy coated to eliminate the potential of corrosion.
Heavy duty, 10 mil thick pure grade PVC coated adjustable bin dividers.
Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).

Design

True's refrigerated horizontal bottle coolers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.

Refrigeration System

Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
Condensing unit accessed from behind front grill, slides out for easy maintenance.
Forced-air cooling. Positively guided air flow cools bottles on top first. Evaporator coil virtually runs length of cooler for balanced temperatures throughout the cabinet.

Cabinet Construction

Exterior - Stainless steel countertop and lids, black powder coated cold rolled steel front, sides, and back.
Interior - long lasting, heavy duty galvanized steel.
Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
Bottle cap openers and cap catchers included. Field installed.

Bin Dividers

Seven (7) heavy duty, 10 mil thick pure grade PVC coated adjustable bin dividers to maximize storage.

Lighting

LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Model Features

Evaporator is epoxy coated to eliminate the potential of corrosion.
Barrel locks standard.
Complies with NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Electrical

Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUTD-95-38-HC

Depth26.875

Temp Range33- 38 F

PlugStandard US 15 Amp Plug

Shipping Weight460 lb

Width95.125

Height33.5

RefrigerantR290

Amps3.1

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelTD-95-38-HC

Crated Weight460 lb

Cabinet Dimensions

Width (W)95.125

Depth (D)26.875

Height (H)33.5

Electrical

Horsepower1/4

Voltage115

Amps3.1

NEMA Config.Standard US 15 Amp Plug

Cord Length7 ft

RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Downloads

PDF Download Spec Sheet (PDF) TD-95-38-HC ·rough-in data & plan view

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
