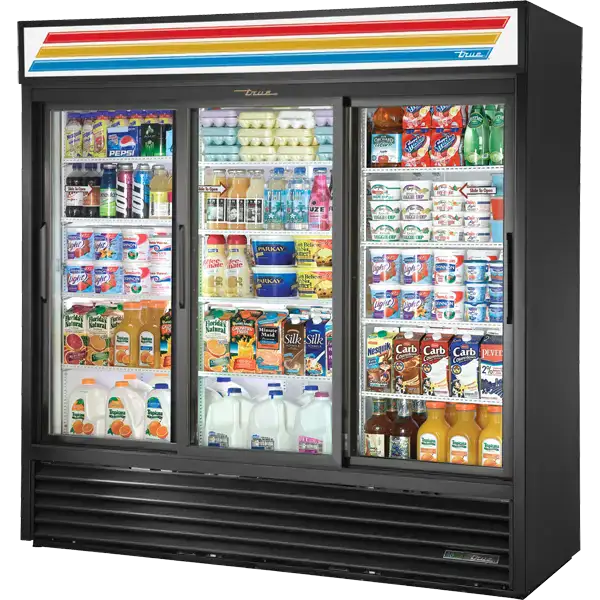

True GDM-69-HC-LD Glass Door Merchandiser

True GDM-69-HC-LD Glass Door Merchandiser

$ 6,613.65

Pickup available at Pleasant Prairie, WI

Three-door sliding glass merchandiser with 12 shelves, LED lighting, and high-efficiency R290 cooling.

Temp Range 33-38 F

Key Features

  • The world's #1 manufacturer of glass door merchandisers.
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced, refrigeration system holds 33°F to 38°F (.5°C to 3.3°C) for best food preservation in extreme conditions.
  • Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum interior liner with stainless steel floor.
  • Self closing doors. Counter-balanced weight system for smooth, even, positive closing.
  • "Low-E", double pane thermal insulated glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology.
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
  • Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Bottom mounted units feature
  • "No stoop" lower shelf to maximize product visibility.
  • Storage on top of cabinet.
  • Easily accessible condenser coil for cleaning.

Design

  • True's commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays packaged food and beverages.

Refrigeration System

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Bottom mounted condensing unit positioned for easy maintenance. "No stoop" lower shelf maximizes visibility by raising merchandised product to higher level.

Cabinet Construction

  • Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Frame rail fitted with leg levelers.

Doors

  • "Low-E", double pane thermal insulated glass door assemblies with mitered plastic channel frames. The latest in energy efficient technology.
  • Each door fitted with 12" (305 mm) long handle.
  • Self closing doors. Counter-balanced weight system for smooth, even, positive closing.

Shelving

  • Twelve (12) adjustable, heavy duty PVC coated wire shelves 23 7/8"L x 20 9/16"D (607 mm x 523 mm). Four (4) chrome plated shelf clips included per shelf.
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

Lighting

  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Model Features

  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • See our website www.truemfg.com for latest color and sign offerings.
  • Convenient clean-out drain built in cabinet floor.
  • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Electrical

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUGDM-69-HC-LD
Depth29.625
Temp Range33-38 F
PlugStandard US 15 Amp Plug
Shipping Weight635 lb
Width78.125
Height78.625
RefrigerantR290
Amps7.3

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelGDM-69-HC-LD
Crated Weight635 lb
Cabinet Dimensions
Width (W)78.125
Depth (D)29.625
Height (H)78.625
Electrical
Horsepower1/2
Voltage115
Amps7.3
NEMA Config.Standard US 15 Amp Plug
Cord Length10 ft
RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
