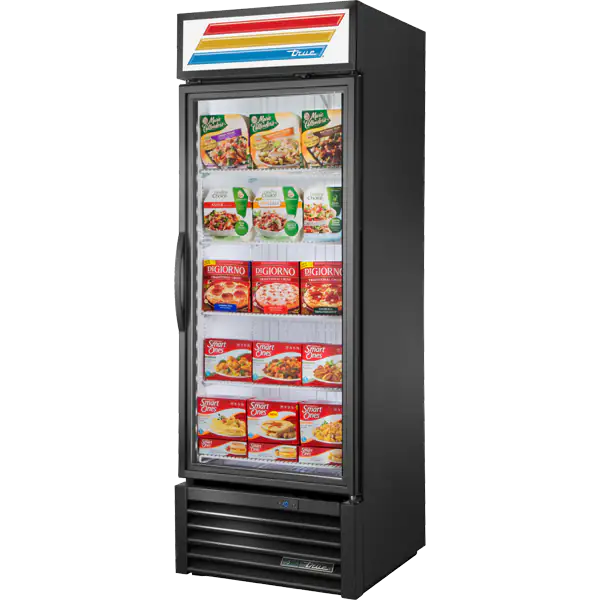

Black refrigerator with glass door displaying food items on a white background

True GDM-23F-HC-TSL01 Glass Door Merchandiser Freezer

$ 5,552.02

Pickup available at Pleasant Prairie, WI

Single-door glass freezer merchandiser with -10°F performance, triple-pane glass, LED lighting, and R290 refrigeration.

Temp Range -10 F

Key Features

  • The world's #1 manufacturer of glass door merchandisers.
  • Designed using the highest quality materials and components to provide the user with an attractive, point of purchase merchandiser that brilliantly displays frozen food and ice cream, resulting in high impulse sales.
  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • Oversized, factory balanced, refrigeration system holds -10°F (-23.3°C). Ideal for ice cream and frozen food products.
  • Exterior - non-peel or chip black powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum interior liner with stainless steel floor.
  • Self closing door. Positive seal, torsion type closure system.
  • Triple pane thermal glass door assembly with extruded aluminum frame.
  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.
  • Entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • "No stoop" lower shelf to maximize product visibility.
  • Easily accessible condenser coil for cleaning.

Design

  • True's glass door freezers are designed with enduring quality that protects your long term investment.
  • True's commitment to using the highest quality materials and oversized refrigeration systems provides the user with colder product temperatures, and lower utility costs in an attractive merchandiser that brilliantly displays frozen food and ice cream.

Refrigeration System

  • Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant that has zero (0) ozone depletion potential (ODP), & 0.02 global warming potential (GWP).
  • High capacity, factory balanced refrigeration system that maintains -10°F (-23.3°C) temperatures. Ideal for both frozen foods and ice cream.
  • State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
  • Bottom mounted condensing unit positioned for easy maintenance. "No stoop" lower shelf maximizes visibility by raising merchandised product to higher level.
  • Automatic defrost system time-initiated, temperature-terminated. Saves energy consumption and provides shortest possible defrost cycle.

Cabinet Construction

  • Exterior - non-peel or chip white powder coated cold rolled steel; durable and permanent.
  • Interior - attractive, white aluminum liner with stainless steel floor.
  • Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
  • Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
  • Frame rail fitted with leg levelers.
  • Illuminated exterior sign panel. Variety of sign options available.

Door

  • Triple pane thermal insulated glass door assembly with extruded aluminum frame.
  • Door fitted with 12" (305 mm) long extruded handle.
  • Self closing door. Positive seal, torsion type closure system.
  • Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.

Shelving

  • Four (4) adjustable, heavy duty PVC coated wire shelves 22 7/8"L x 21 1/4"D (582 mm x 540 mm). Four (4) chrome plated shelf clips included per shelf.
  • Shelf support pilasters made of same material as cabinet interior; shelves are adjustable on 1/2" (13 mm) increments.

Lighting

  • LED interior lighting provides more even lighting throughout the cabinet. Safety shielded.

Model Features

  • Evaporator is epoxy coated to eliminate the potential of corrosion.
  • See our website www.truemfg.com for latest color and sign offerings.
  • Backguard and floor rack ensure optimum airflow.
  • Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.

Electrical

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUGDM-23F-HC-TSL01
Depth29.875
Temp Range-10 F
PlugStandard US 15 Amp Plug
Shipping Weight355 lb
Width27
Height78.625
RefrigerantR290
Amps4.4

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelGDM-23F-HC-TSL01
Crated Weight355 lb
Cabinet Dimensions
Width (W)27
Depth (D)29.875
Height (H)78.625
Electrical
Horsepower1/2
Voltage115
Amps4.4
NEMA Config.Standard US 15 Amp Plug
Cord Length10 ft
RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.
