True TBB24-48 48-inch glass swing door back bar cooler for bars and taverns

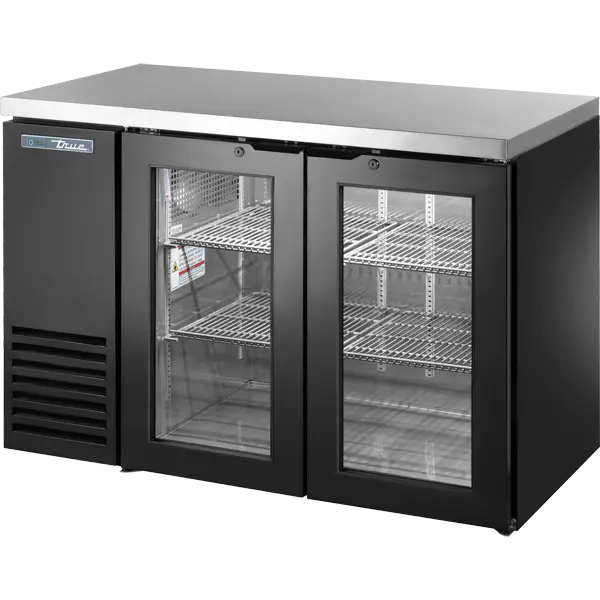

True TBB24-48-2G-Z1-SFT-B-1 Glass Swing Door Back Bar Cooler

$ 4,432.37

Pickup available at Pleasant Prairie

Compact glass door back bar cooler designed for efficient beverage display and storage

Temp Range 35 F

Key Features

  • R290 Hydrocarbon refrigerant.
  • Maintains temperature of 35°F (1.7°C).
  • Exterior: Black powder coated cold rolled steel with stainless steel countertop.
  • Interior: Stainless steel floor with heavy gauge galvanized steel walls.
  • Each Doors fitted with black flat top door handles.
  • True's self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product.
  • LED interior lighting.
  • NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
  • Recommended 1" clearance side and back
  • UL Rated for outdoor use.

Refrigeration System

  • Factory engineered, self-contained, capillary tube system.
  • Environmentally friendly R290 hydrocarbon refrigerant.
  • Forced air refrigeration system which maintains 35°F (1.7°C) product temperature.
  • True's self-cleaning RCU technology eliminates the need to clean the condenser coil, reduces energy consumption and helps maintain the coldest temperatures and freshest product.

Cabinet Construction

  • Exterior: Black, powder coated cold-rolled steel with stainless steel countertop.
  • Interior: Stainless steel floor with heavy gauge galvanized steel walls.
  • Insulation: Entire cabinet is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion and zero global warming potential.
  • Base fitted with leg levelers.

Doors

  • Low-E, double pane thermal insulated glass doors with black powder coated door frames.
  • Each door fitted with black flat top door handles.
  • Door locks standard.

Shelving

  • Four (4) adjustable, gray PVC coated wire shelves. 15 1/2" W x 18" D (394 mm x 458 mm). Four (4) chrome plated shelf clips included per shelf.
  • Aluminum shelf support pilasters. Shelves are adjustable on 1/2" (13 mm) increments.

Model Features

  • NSF/ANSI Standard 7 compliant for the storage and/or display of packaged or bottled product.
  • Electronic control.
  • UL approved for outdoor use.

Electrical

  • Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.

At a Glance

SKUTBB24-48-2G-Z1-SFT-B-1
Depth24.875
Temp Range35 F
PlugStandard US 15 Amp Plug
Shipping Weight290 lb
Width48.125
Height34.75
RefrigerantR290
Amps1.8

Rough-In Data

Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number). Specifications subject to change without notice.

ModelTBB24-48-2G-Z1-SFT-B-1
Crated Weight290 lb
Cabinet Dimensions
Width (W)48.125
Depth (D)24.875
Height (H)34.75
Electrical
Horsepower1/5
Voltage115
Amps1.8
NEMA Config.Standard US 15 Amp Plug
Cord Length10 ft
RefrigerantR290

Certifications & Compliance

Made with innovation in the USAZero ODP / zero GWP insulation

Warranty

TRUE warrants to the original purchaser of every new TRUE commercial foodservice product, the cabinet, and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by TRUE and upon proper installation and start-up in accordance with the instructional information supplied with each TRUE unit. TRUE’s labor coverage obligation under this warranty is limited to a period of seven (7) years from the date of the original installation. Any warranty coverage is dependent on the purchase date of the unit being within 39 months of the original ship date from TRUE. The labor warranty shall include standard straight time labor charges only and reasonable travel time, as determined by TRUE. Warranty does not cover issues caused by improper installation or lack of basic preventative maintenance.

True Warranty Program Details →
